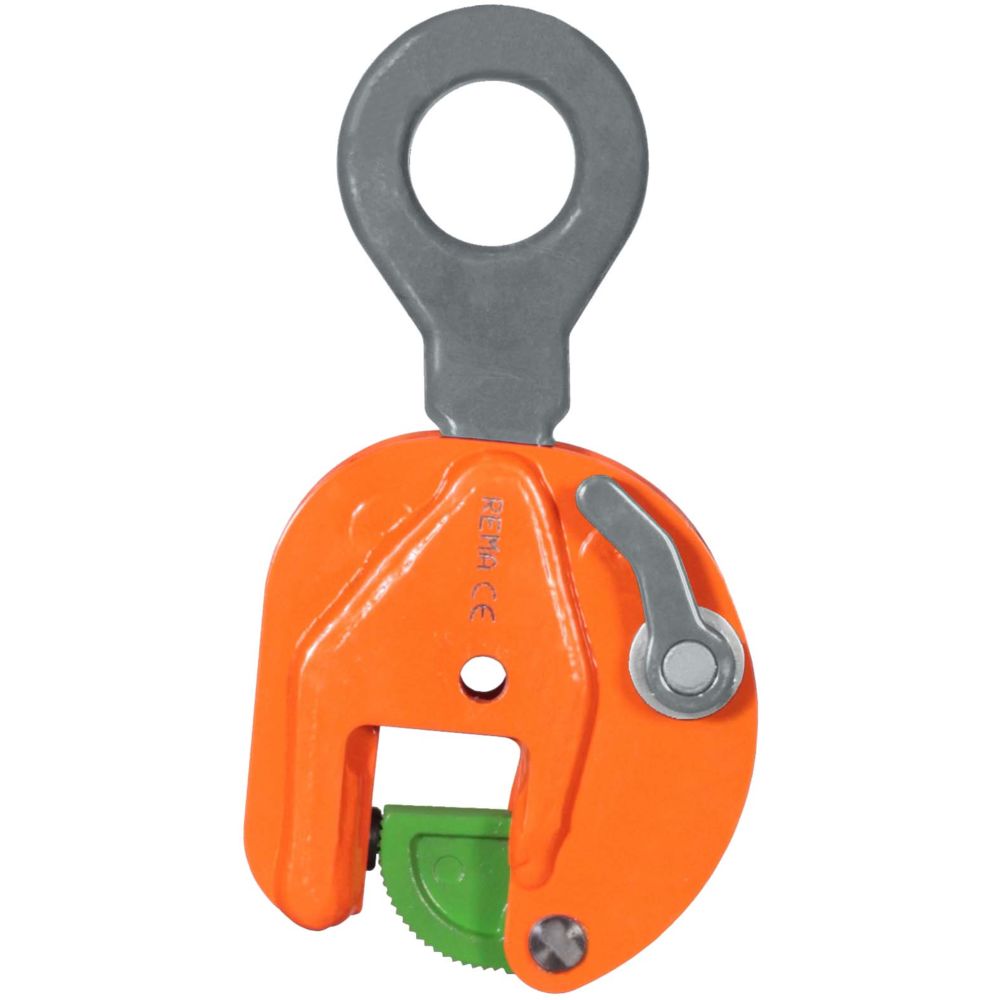

Clema de ridicare verticala CS-H pentru table cu duritate pana la 50HRC (485 HB) REMA

Descriere

Poate ridica sarcina in conditii de siguranta in pozitie verticala.

Articol	Capacitate kg	Deschidere falci (mm)	Tip	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Weight kg
3361101	0.75	0-13	CS-0.75H	47	30	205	100	35	37	10	1.5
3361103	1000	0-25	CS-1.0H	55	45	265	142	38	47	15	3.6
3361105	2000	0-35	CS-2.0H	80	65	335	185	55	56	17	6.5
3361107	3000	0-35	CS-3.0H	80	65	335	185	55	56	17	7
3361109	4500	0-45	CS-4.5H	85	70	430	230	60	77	20	16
3361111	6000	0-32	CS-6.0H	114	75	490	230	78	78	20	19
